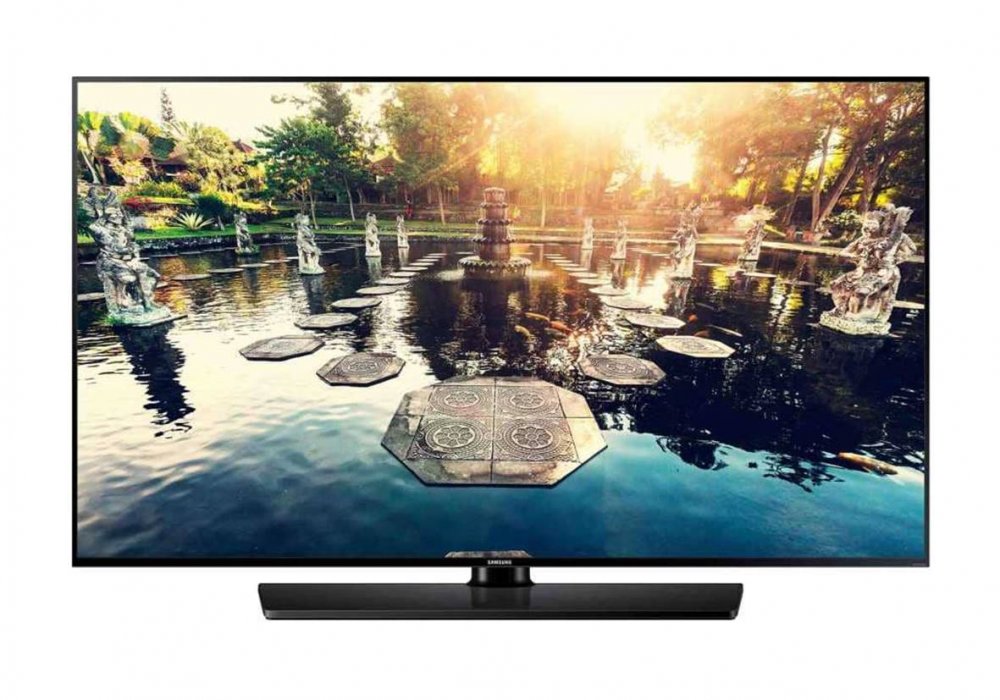

Samsung HG48NE690BF Specifications

   Compare Icon View Other Samsung LED TVs
Appx Price Rs.53,012.00
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type LED TV
Screen Size 48 Inch (121.92 cm) 48 Inch TV Dimensions
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Motion Rate 60 Hz
Viewing Angle 178°/178°
View Latest 48.00 inch LED TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AAC, WAV, WMA
Supported Video Formats AVI, MKV, ASF, MP4, 3GP, MOV, FLV, VRO, VOB, PS, TS
Supported Picture Formats JPG, JPEG

Other Video Features

Backlight FHD LED
Film Mode Yes
Wide Color Enhancer ( Plus ) Yes
Picture Engine HyperReal
Dynamic Contrast Ratio Mega Contrast

Other Audio Features

Sound Output ( RMS ) 20 W ( L : 10 W, R : 10 W )
DTS Codec Yes
Virtual Surround Yes
Dolby Digital Plus Yes
TV SoundConnect Yes
BT Headset Support Yes
Wallmount Sound Mode Yes
Speaker Type 2 CH ( Down Firing w/Bass Reflex )

Connectivity Options

HDMI 3 ( 1 Side, 2 Rear )
USB 2.0 2 Side
Ethernet / LAN Side
RF In ( Terrestrial / Cable input / Satellite Input ) Side
RJ12 Rear
Variable Audio Out Rear
RJP ( Remote Jackpack ) Rear
Audio Out ( Mini Jack / LR ) Rear
Ethernet Bridge ( LAN-Out ) Rear
Digital Audio Out ( Optical ) Rear
Component In ( Y / Pb / Pr ) Rear
PC/DVI Audio In ( Mini Jack ) Rear
Variable Audio Out Volume Control Rear
BT HID Built-In Yes
Wireless LAN Built-In Yes
Anynet + ( HDMI-CEC ) Yes
HDMI A / Return Ch. Support Yes
Ex-Link ( RS-232C ) Common( RJP )
Composite In ( AV ) 1 ( Common Use For Component Y )

Smart TV Features

Operating System Tizen
CPU Quad-Core
Soft AP Yes
Pro : Idiom Yes
My Channel Yes
USB Cloning Yes
Voice Control Yes
Security Mode Yes
Software Clock Yes
Power On Mode Yes
Auto Source Mode Yes
Hotel Channel List Yes
Welcome Message Yes
Clock Back Up Supply Yes
Samsung Smart View Yes
RJ12 / IR pass through Yes
Smoovie Compatibility Yes
Channel Menu Display Yes
Wake On LAN ( WOL ) Yes
Samsung LYNK™ DRM Yes
Screwed Battery Cover Yes
Hospitality Home Menu Yes
Wake-up Timer ( Alarm ) Yes
Sound Bar Compatibility Yes
H. Browser Compatibility Yes
S/W EPG ( Solution EPG ) Yes
On / Off Timer ( Schedule ) Yes
Multi Code Remote Control Yes
Mobile To TV - Mirroring, DLNA Yes
Energy Saving Mode ( BLU control ) Yes
Music Mode BackLight On/off Yes
Samsung LYNK™SINC Compatibility Yes
Samsung LYNK™ HMS Compatibility Yes
Samsung LYNK™REACH Server Compatibility Yes
Hospitality Plug & Play ( Easy Set-Up ) Yes
Logo Display With Time Out Setting ( BMP / Movie ) Yes
Bluetooth Music Player ( Mobile → TV ) Yes
Music Mode ( Input : PC / AV / Component / HDMI ) Yes
Samsung LYNK™REACH ( IP ) REACH 4.0
Samsung LYNK™REACH ( RF ) REACH 4.0
Mixed Channel List ( ATSC, DVB-T/T2/C/S2, Analog )

Other Features

Design Silm Edge Mold
Front Color Black
Stand Type Square
EPG Yes
Eco Sensor Yes
Game Mode Yes
Sports Mode Yes
Analog Tuner Yes
Auto Power Off Yes
Picture-In-Picture Yes
USB HID Support Yes
Digital Clean View Yes
Caption ( Subtitle ) Yes
Auto Channel Search Yes
ConnectShare™ ( HDD ) Yes
ConnectShare™ ( USB 2.0 ) Yes
Swivel ( Left / Right ) 90/90
Digital Broadcasting ASTC / Clear QAM
OSD Language English, Spanish, French
Accessibility Voice Guide, Enlarge, High Contrast

General Specifications

Power Supply AC110-120V 60Hz
Max Power Consumption Max 120 W
Power Consumption Typical 60 W
Power Consumption Standby 0.5 W
Weight Without Stand 11.1 Kg
Weight With Stand 14 Kg
Weight Of Package Carton 17.5 Kg

Supplied Accessories

Remote Controller Model TM1240A
Batteries Yes
Data Cable Yes
Power Cable Yes
Security Screws Yes
Stand Mount Kit Yes
Quick Install Guide Yes
VESA Wall Mount Support Yes
Mini Wall Mount Support Yes
