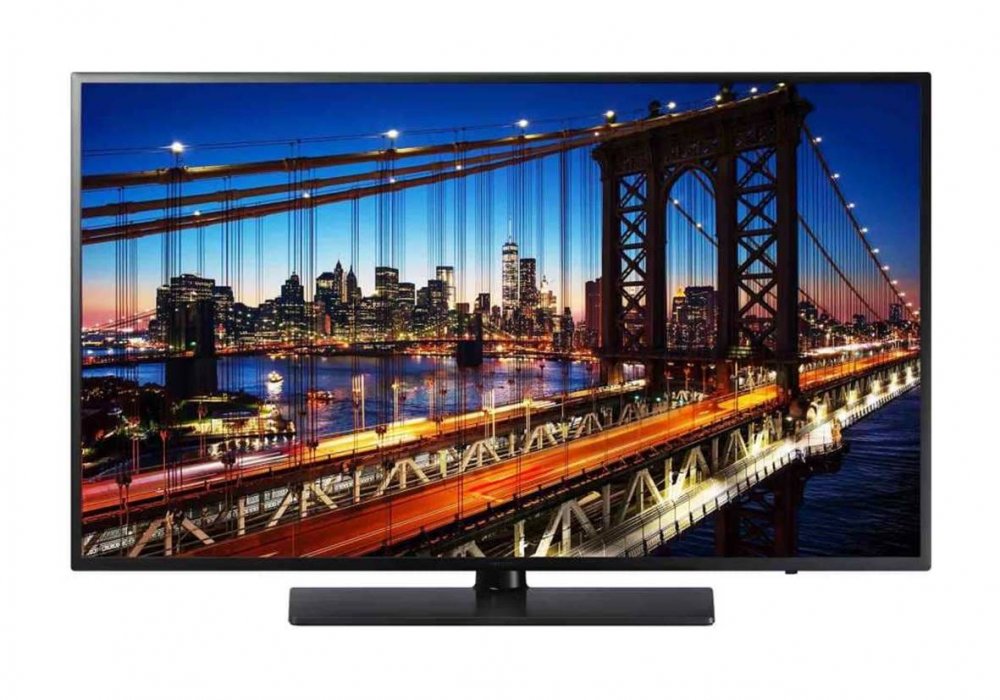

Samsung HG55AF690DG Specifications

   Compare Icon View Other Samsung Smart TVs
Appx Price Rs.139,500.00
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type Smart TV
Screen Size 55 Inch (139 cm) 55 Inch TV Dimensions
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Motion Rate 60 Hz
Viewing Angle 178°/178°
View Latest 55.00 inch Smart TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AAC, WAV, WMA
Supported Video Formats AVI, MKV, ASF, MP4, 3GP, MOV, FLV, VRO, VOB, PS, TS
Supported Picture Formats JPG, JPEG

Other Video Features

Backlight FHD LED
Film Mode Yes
Natural Mode Support Yes
Wide Color Enhancer ( Plus ) Yes
Picture Quality Index 400.0 PQI
Picture Engine HyperReal
Dynamic Contrast Ratio Mega Contrast

Other Audio Features

Sound Output ( RMS ) 20 W ( L : 10 W, R : 10 W )
Dolby Digital Plus Yes
Bluetooth Audio Yes
Speaker Type 2 CH ( Down Firing w/Bass Reflex )

Connectivity Options

HDMI 3 ( 2 Side, 1 Rear )
USB 2.0 2 Side
Ethernet / LAN Side
Variable Audio Out Side
RJP ( Remote Jackpack ) Side
Digital Audio Out ( Optical ) Side
Variable Audio Out Volume Control Side
RF In ( Terrestrial / Cable input / Satellite Input ) Side
RJ12 Rear
Headphone Rear
Headphone ID Rear
Ethernet Bridge ( LAN-Out ) Rear
Component In ( Y / Pb / Pr ) Rear
BT HID Built-In Yes
HDMI Quick Switch Yes
Anynet + ( HDMI-CEC ) Yes
HDMI A / Return Ch. Support Yes
Composite In ( AV ) 1 ( Common Use For Component Y )

Smart TV Features

Operating System Tizen
CPU Quad-Core
Soft AP Yes
Smart TV Yes
App Casting Yes
My Channel Yes
USB Cloning Yes
Web Browser Yes
Security Mode Yes
Power On Mode Yes
Auto Source Mode Yes
Hotel Channel List Yes
Welcome Message Yes
Clock Back Up Supply Yes
Samsung Smart View Yes
RJ12 / IR pass through Yes
Smoovie Compatibility Yes
Channel Menu Display Yes
Wake-up Timer ( Alarm ) Yes
Screwed Battery Cover Yes
Hospitality Home Menu Yes
Sound Bar Compatibility Yes
H. Browser Compatibility Yes
Samsung LYNK™ DRM IP Yes
Samsung LYNK™ DRM RF Yes
On / Off Timer ( Schedule ) Yes
Multi Code Remote Control Yes
Mobile To TV - Mirroring, DLNA Yes
Energy Saving Mode ( BLU control ) Yes
External Clock Compatibility Yes
External Clock Dimming Control Yes
Music Mode BackLight On/off Yes
Hospitality Plug & Play ( Easy Set-Up ) Yes
Logo Display With Time Out Setting ( BMP / Movie ) Yes
Bluetooth Music Player ( Mobile → TV ) Yes
Music Mode ( Input : PC / AV / Component / HDMI ) Yes
Samsung LYNK™ HMS Compatibility Yes
Samsung LYNK™REACH ( IP ) REACH 4.0
Samsung LYNK™REACH ( RF ) REACH 4.0
Mixed Channel List ( ATSC, DVB-T/T2/C/S2, Analog )

Other Features

Design M5500
Slim Type Step-Up Slim
Front Color Dark Titan
Stand Type Square
Bezel Type VNB
EPG Yes
Eco Sensor Yes
Game Mode Yes
Analog Tuner Yes
Auto Power Off Yes
USB HID Support Yes
Caption ( Subtitle ) Yes
Digital Clean View Yes
Auto Channel Search Yes
ConnectShare™ ( HDD ) Yes
ConnectShare™ ( USB 2.0 ) Yes
Digital Broadcasting ISDB-T
Swivel ( Left / Right ) Yes ( 90 / 90 )
OSD Language Local Languages
Accessibility Voice Guide ( AU English ), Enlarge, High Contrast, Multi-Output Audio

General Specifications

Power Supply AC100-240V 50/60Hz
Max Power Consumption 108.0 W
Weight Without Stand 16.2 Kg
Weight With Stand 19.2 Kg
Weight Of Package Carton 24.7 Kg

Supplied Accessories

Remote Control TM1240A
Batteries Yes
Data Cable Yes
Power Cable Yes
Stand Mount Kit Yes
Quick Install Guide Yes
VESA Wall Mount Support Yes
