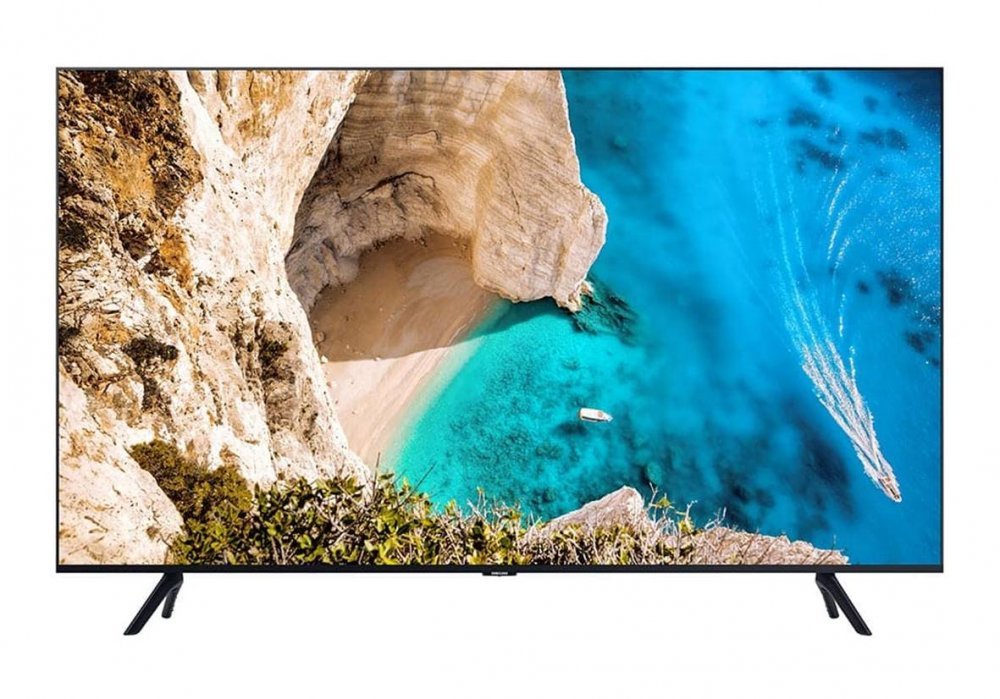

Samsung HG55AT690UJ Specifications

   Compare Icon View Other Samsung Smart TVs
Appx Price Rs.502,972.45
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type Smart TV
Screen Size 55 Inch (139 cm) 55 Inch TV Dimensions
Screen Resolution 4K 3840 x 2160
Aspect Ratio 16:9
Motion Rate 100 Hz
Viewing Angle 178°/178°
View Latest 55.00 inch Smart TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AAC, WAV, WMA
Supported Video Formats AVI, MKV, ASF, MP4, 3GP, MOV, FLV, VRO, VOB, PS, TS
Supported Picture Formats JPEG, JPG

Other Video Features

Backlight 4K UHD LED
HLG Yes
HDR Yes
HDR10+ Yes
Film Mode Yes
Auto Motion Plus Yes
Contrast Enhancer Yes
Natural Mode Support Yes
Color PurColor
Picture Quality Index 1300 PQI
Micro Dimming UHD Dimming
Contrast Mega Contrast
Picture Engine UHD Mastering Engine

Other Audio Features

Sound Output ( RMS ) 20 W
Dolby Digital Plus Yes
Speaker Type 2 Channal

Connectivity Options

HDMI 3 Side
USB 2.0 2 Side
RJ12 Yes Rear
Ethernet / LAN Yes Rear
Door-Eye Control Yes Rear
Variable Audio Out Yes Rear
RJP ( Remote Jackpack ) Yes Rear
Ethernet Bridge ( LAN-Out ) Yes Rear
Variable Audio Out Volume Control Yes Rear
Wifi Yes
BT HID Built-In Yes
Anynet + ( HDMI-CEC ) Yes
HDMI A / Return Ch. Support Yes
Composite In ( AV ) 1 ( Common Use For Component Y )
RF In ( Terrestrial / Cable input / Satellite Input) 1/1 ( Common Use For Terrestrial ) / 0

Smart TV Features

Operating System Tizen
SMART TV Yes
Soft AP Yes
My Channel Yes
USB Cloning Yes
Security Mode Yes
Power on Mode Yes
Welcome Message Yes
Auto Source Mode Yes
Hotel Channel List Yes
Samsung LYNK™ DRM Yes
Smoovie Compatibility Yes
Clock Back Up Supply Yes
Channel Menu Display Yes
RJ12 / IR Pass Through Yes
Hospitality Home Menu Yes
Soundbar Compatibility Yes
H. Browser Compatibility Yes
Wake-Up Timer ( Alarm ) Yes
On / Off Timer ( Schedule ) Yes
Screwed Remote Battery Cover Yes
Mobile To TV - Mirroring, DLNA Yes
Energy Saving Mode ( BLU Control ) Yes
Hospitality Plug & Play ( Easy Set-Up ) Yes
Logo Display with Time Out Setting ( BMP / Movie ) Yes
Multi Code Remote Control Yes
Bluetooth Music Player ( Mobile → TV ) Yes
Music Mode ( Input : PC / AV / Component / HDMI ) Yes
Samsung LYNK™REACH ( IP ) REACH 4.0 Yes
Samsung LYNK™REACH ( RF ) REACH 4.0 Yes
Mixed Channel List ( ATSC, DVB-T / T2 / C / S2, Analog ) Yes

Other Features

Design Bezel-Less Design
Bezel Type 3 Bezel-Less
Stand Type Slim Feet
Front Color Black
EPG Yes
Eco Sensor Yes
Analog Tune Yes
IPv6 Support Yes
Auto Power Off Yes
USB HID Support Yes
Digital Clean View Yes
Caption ( Subtitle ) Yes
Auto Channel Search Yes
Connect Share™ ( HDD ) Yes
Energy Efficiency Class 3 Yes
ConnectShare™ ( USB 2.0 ) Yes
Digital Broadcasting DTMB, DVB-C
OSD Language Local Languages
Accessibility Voice Guide ( UK English. Mandarin Chinese )

General Specifications

Power Supply ( V ) AC220-240V 50/60Hz
Power Consumption Max 145 W
Power Consumption Typical 125 W
Power Consumption Standby 0.50 W
Set Weight without Stand 14.3 Kg
Set Weight with Stand 14.6 Kg
Package Weight 19.9 Kg
VESA Mount 200 mm X 200 mm

Supplied Accessories

Remote Control Model TM1240A
Batteries Yes
Power Cable Yes
Slim Gender Cable Yes
Quick Install Guide Yes
Mini Wall Mount Support Yes
VESA Wall Mount Supported Yes
