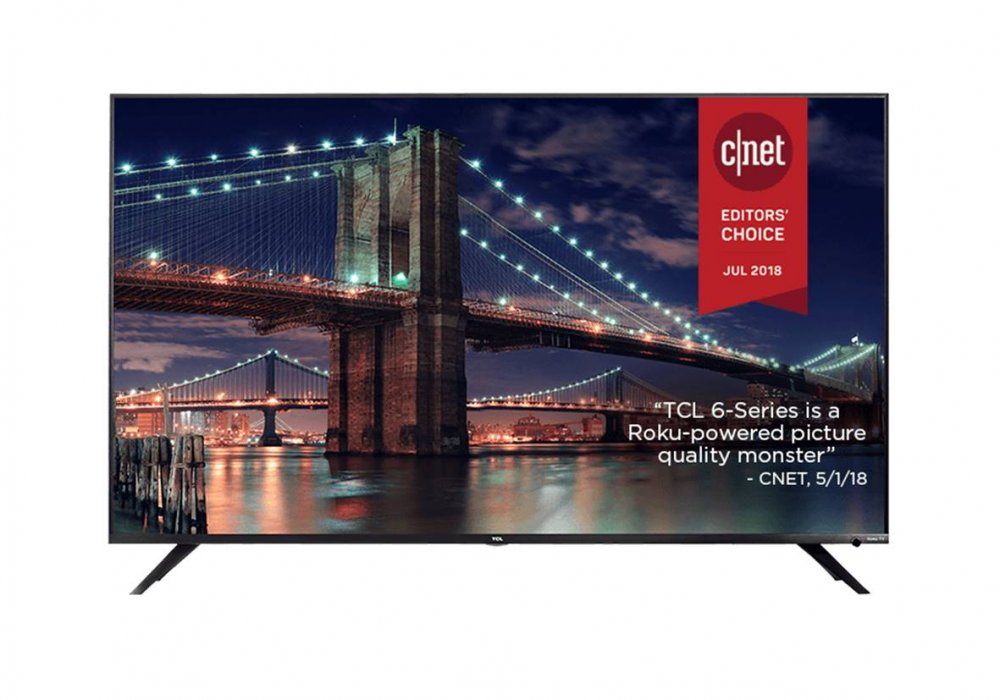

TCL 55R617-CA Specifications

   Compare Icon View Other TCL Smart TVs
Appx Price Rs.70,343.90
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type Smart TV
Screen Size 55 Inch (139 cm) 55 Inch TV Dimensions
Screen Resolution 4K 3840 x 2160
Aspect Ratio 16:9
Motion Rate 120 Hz
Viewing Angle 178°/178°
View Latest 55.00 inch Smart TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AC3, AAC, AC4
Supported Video Formats AVI, DIV, MPEG-4, MPEG-H, MP4, VC-1, VP8, PP9
Supported Picture Formats JPEG, PNG ,BMP, HEIF

Other Video Features

Backlight 4K UHD LED
Dolby Vision Yes
HDR 10 Yes
Wide Color Gamut Yes
HDR PRO Gamma Yes
Clear Motion Index 120
Picture Engine IPQ Engine
Display Colors 1.07 Billion
Contrast Control Zones 120 Zones

Other Audio Features

Audio Output ( RMS ) 8 W + 8 W
Dolby Digital Plus Yes
Dolby Digital Yes

Connectivity Options

HDMI 2.0 3, 2.0 W / HDCP 2.2 ( 1 ARC )
USB 2.0 1
Ethernet / LAN Yes
RF Input ( NTSC, ATSC ) 1 Yes
SPDIF Digital Audio Optical 1 Yes
Audio Output Headphone 1 Yes
Wi-Fi Type 802.11ac 2x2 Dual Band ( Support 2.4GHz & 5GHz )
AV Input Composite Video + L&R Audio In ( Mini 3.5 mm Connector )

Smart TV Features

Operating System Roku TV
GPU Dual - Core
RAM Dual - Core
Works With Alexa Yes
Google Assistant Yes
Powerful Mobile App Yes
Advanced PQ Setting With Mobile App Yes
TV Smart Platform Roku TV Smart Platform With Thousands Of Streaming Channels

Other Features

Sleep Timer Yes
Closed Caption Yes
1 Year Limited Warranty Yes
Parental Control ( V-Chip ) Yes
Accessible Menu System ( CVAA ) Yes
Control Buttons One Button
Multilingual On-Screen-Display English, Spanish, French
Tuner Type ATSC / NTSC / Clear QAM

General Specifications

Power Supply (Voltage, Hz) AC 100V-240V 50/60Hz
Power Consumption 230 W
Annual Power Consumption 267 kWh/Y
Power Consumption Standby <0.5 W
Weight Without Stand 16.82 Kg
Weight With Stand 17.32 Kg
Packaging Weight 23.90 Kg
VESA Hole Pattern 200 mm X 200 mm

Supplied Accessories

Remote Voice Enabled Remote Control RC580
2 AAA Batteries Yes
User Manual Yes
Analog Audio/ Video Input Adapter Yes
Screw Size M6 X 16
Quick Start Guide Yes English
